60V 30A-70A Smart BMS with BT UART RS485 CAN Temperature Sensor
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 基本材料 | FR-4 | 銅の厚さ | 1オンス |
|---|---|---|---|
| ボードの厚さ | 1.6mm | 分穴のサイズ | 0.20mm |
| 分線幅 | 0.1mm | 分ライン間隔 | 0.1mm |
| 表面仕上げ | Haslリードフリー | 電圧範囲 | 24V/36V/48V/60V/72V |
| 電池のタイプ | リチウム イオン/LiFePO4 | 通信インターフェイス | RS485/RS232/BT/CAN |
| 並列接続 | バッテリーパック15個 | 現在の範囲 | 30A-70A |
| 細胞数 | 3S-32S | SOC機能 | 自動学習 |
| 歴史的データ保存 | 400個 | ||
| ハイライト | 60V Smart BMS with Bluetooth,30A-70A BMS with temperature sensor,RS485 CAN BMS with UART |
||
製品の説明

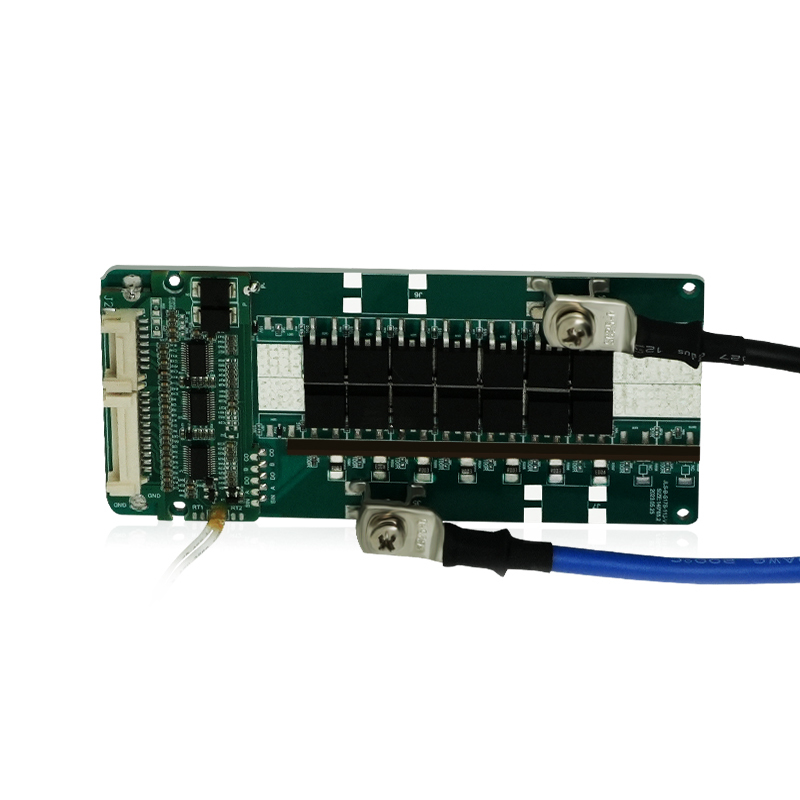

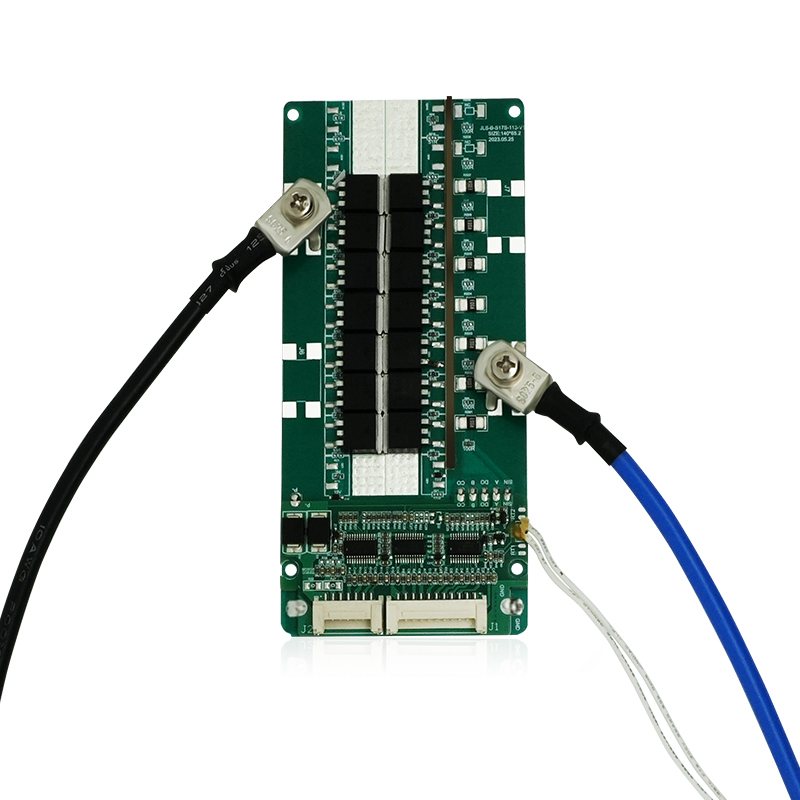

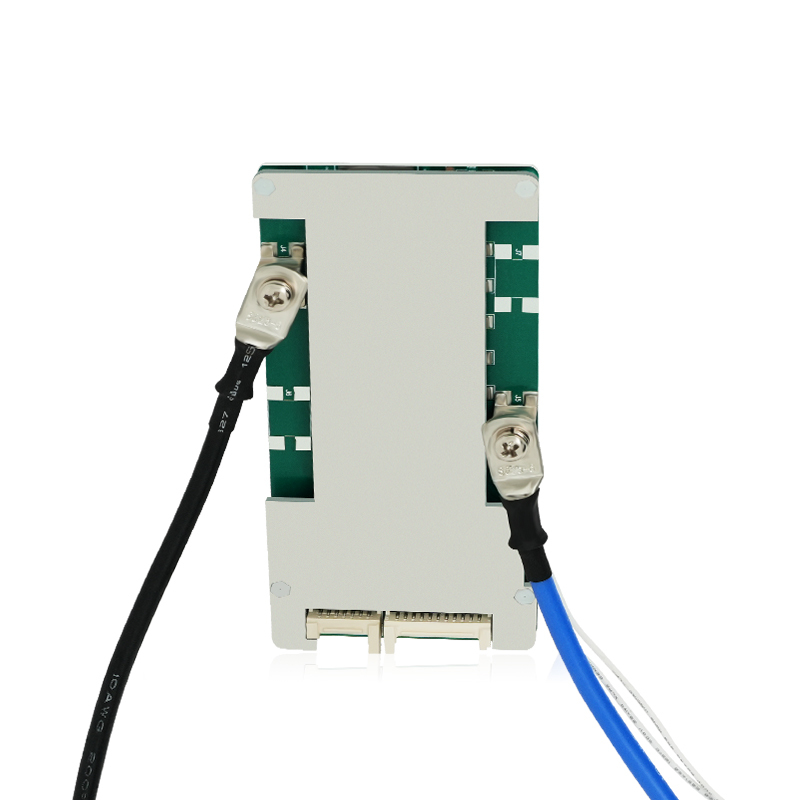

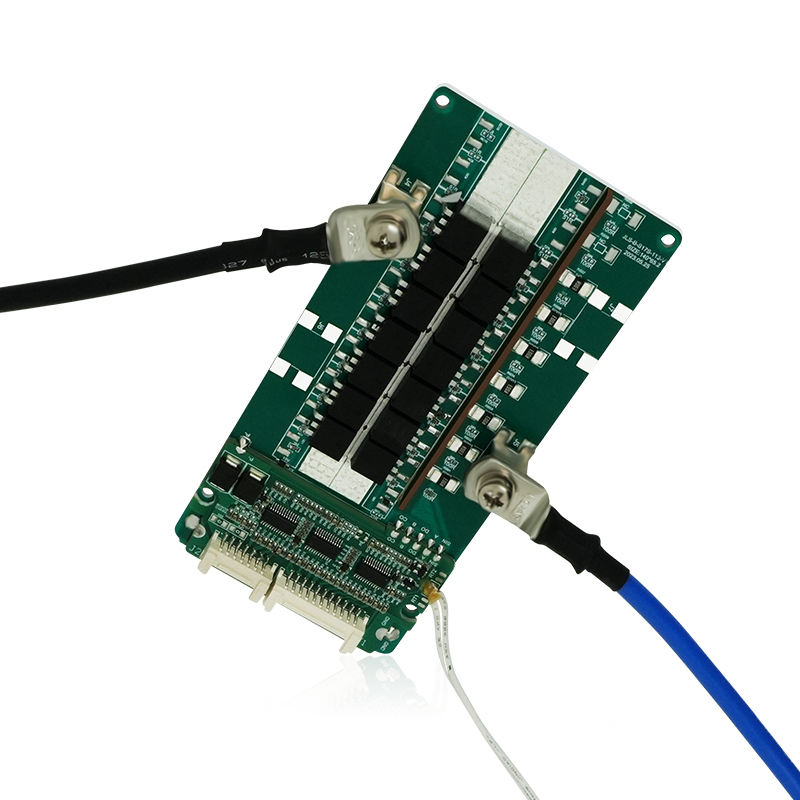

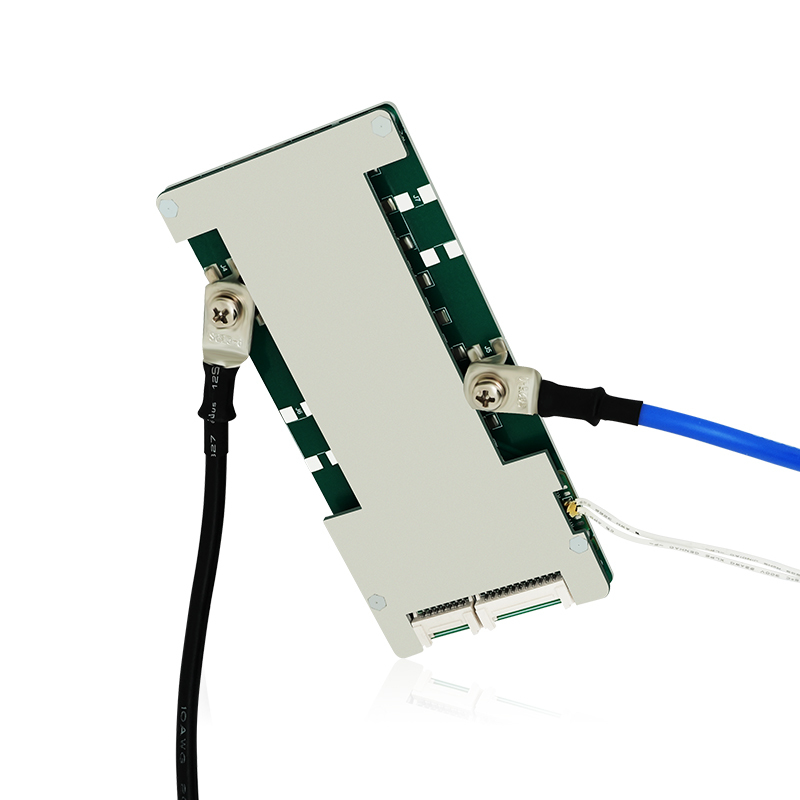

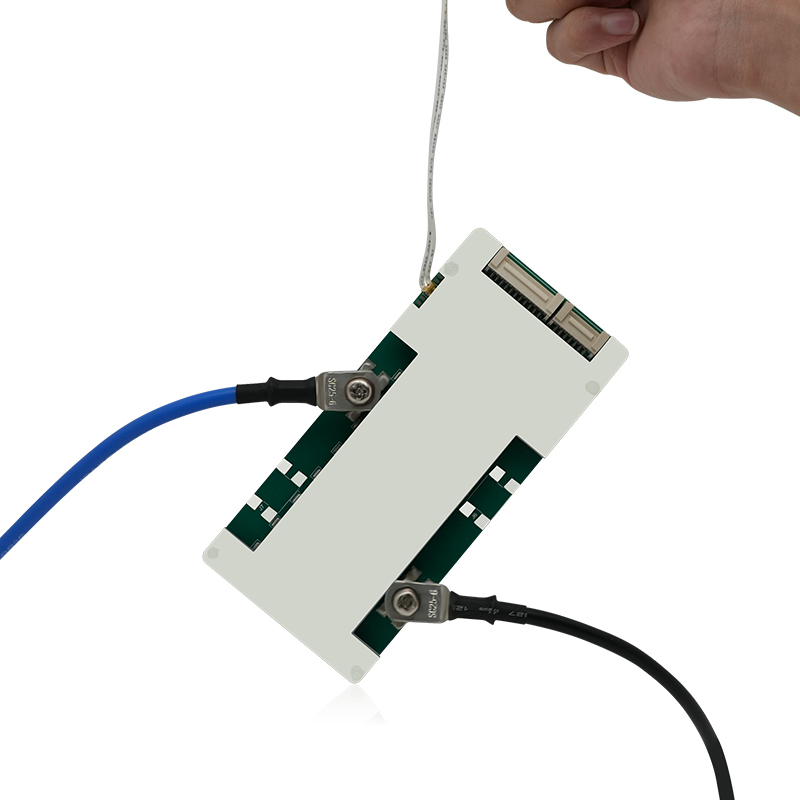

17S Li-ion 60V 30A/40A/50A/60A/70A Smart BMS with BT/UART/RS485/CAN and Temperature Sensor & Buzzer Function
Product Description
The KLSKF-113 is specifically designed for energy storage battery packs, compatible with various lithium batteries including lithium-ion and lithium iron phosphate.
- Comprehensive protection functions for charging and discharging
- SOC/SOH automatic learning function with 400 historical data storage capacity
- RS485/RS232/BT/CAN communication for real-time battery data monitoring and online upgrades
- Supports parallel connection of up to 15 battery packs
- Compatible with mainstream inverters (PYLONTECH, GOODVE, Growatt, Victron energy, etc.)
- Fast intelligent pre-charging with multi-platform support (mobile APP, color touch screen, computer interface)
Product Parameters
| Product Name | 8S-16S, 100A-200A Li-ion/LiFePO4 Smart BMS with LCD (optional) |
|---|---|
| Model | KLSKF-113 |
| Common Version | Common port for charge/discharge |
| Customization | Any PCB from 3S-32S lithium batteries with different current |
| MOQ | 1 piece |
| Delivery Time | 1-7 working days |
| Packaging | Bubble bag/box |
With the growing application of lithium batteries in home-energy storage, the 057 BMS stands out for its excellent performance, high reliability, and cost-effectiveness. Featuring multiple communication methods (BT/RS485/RS232S/CAN), it connects to computer interfaces and mobile apps for intelligent battery management.
Product Images
About Shenzhen Kinglisheng New Energy Technology Co., Limited (KLS)
Established in 2014 in Shenzhen, China, KLS specializes in PCB assemblies with both surface-mount and through-hole technology. Our skilled technicians and engineers provide full PCBA design and production capabilities, offering turnkey solutions from material procurement to production.
Certifications
Product Packaging
Frequently Asked Questions
Why choose KLS?
• Efficient after-sales service with 13+ years technical support
• Products certified with FCC, CE, ROHS, ISO standards
• Competitive factory pricing with controllable delivery times
What is your product range?
We specialize in battery management systems for power batteries, energy storage batteries, and consumer batteries, primarily for LFP and NCM batteries.
What is your MOQ and lead time?
• MOQ: 1 piece
• Custom ODM available
• 1-3 days for existing samples, 3-15 days for customized samples
• Batch delivery time depends on quantity
What payment methods do you accept?
We accept TT wire transfer, cash, Visa, Mastercard, PayPal, Apple Pay, Google Pay, and real-time bank transfers (negotiable).
How do you ensure quality?
• Strict inspection procedures from raw materials to shipment
• Full inspection implementation
• FCC, CE, ROHS, ISO certified
• 2-year after-sales warranty
How to choose the right BMS?
Consult our customer service with your battery's voltage and current specifications, and we'll recommend the most suitable battery management system.
