Custom 6S 10A BMS for Li-ion Batteries with Overcharge Protection
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| Base Material | FR-4 | Copper Thickness | 0.5-4oz/1oz /2oz or custom |
|---|---|---|---|
| Board Thickness | 0.2-6mm | Min. Hole Size | T/2mm/0.2mm/0.15mm or Custom |
| Min. Line Width | 0.15mm/0.11mm or Custom | Min. Line Spacing | 0.15mm/0.11mm or Custom |
| Number of Strings | 3-24S Custom | Voltage | 12V/24V36V/48V/60V Custom |
| Applicable Battery | LiFePO4,Li-ion 18650 Bluetooth | Size | 50*35mm |
| Common Version | Common port for charge/discharge | Custom Current | 10A-200A |
| Temp Sensor | yes | Voltage Balancing Accuracy | ±25mV |
| Operating Temperature | -40°C to +85°C | ||
| ハイライト | Custom 6S BMS for Li-ion,10A BMS with overcharge protection,Customized BMS for lithium batteries |
||
製品の説明

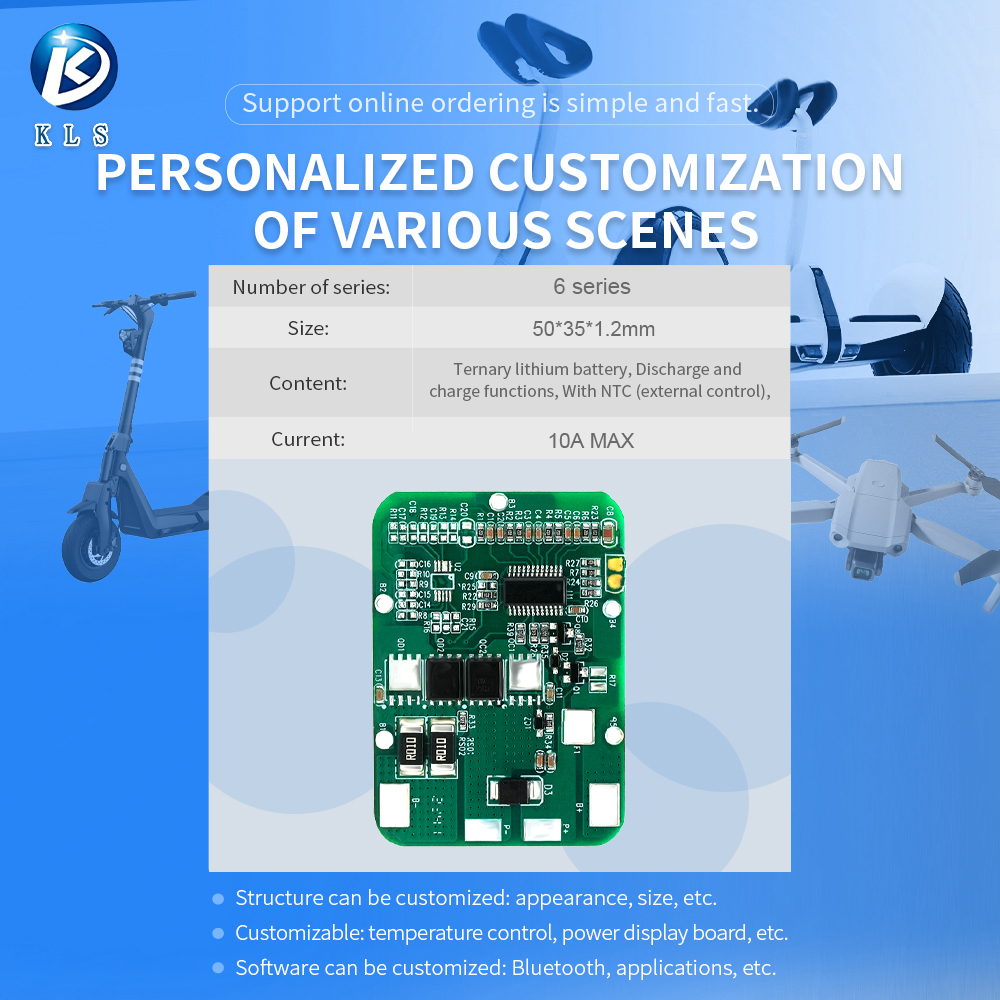

KLS Custom 6S 10ABMS 22.2V Li-ion Battery Management System
Professional-grade battery management system with overcharge/discharge protection, ISO9001 and CE certified for quality assurance.
Product Specifications
| Attribute | Value |
|---|---|
| Base Material | FR-4 |
| Copper Thickness | 0.5-4oz/1oz /2oz or custom |
| Board Thickness | 0.2-6mm |
| Min. Hole Size | T/2mm/0.2mm/0.15mm or Custom |
| Min. Line Width | 0.15mm/0.11mm or Custom |
| Min. Line Spacing | 0.15mm/0.11mm or Custom |
| Product name | Battery protection board |
| Number of Strings | 3-24S Custom |
| Voltage | 12V/24V36V/48V/60V Custom |
| Applicable Battery | LiFePO4, Li-ion 18650 Bluetooth |

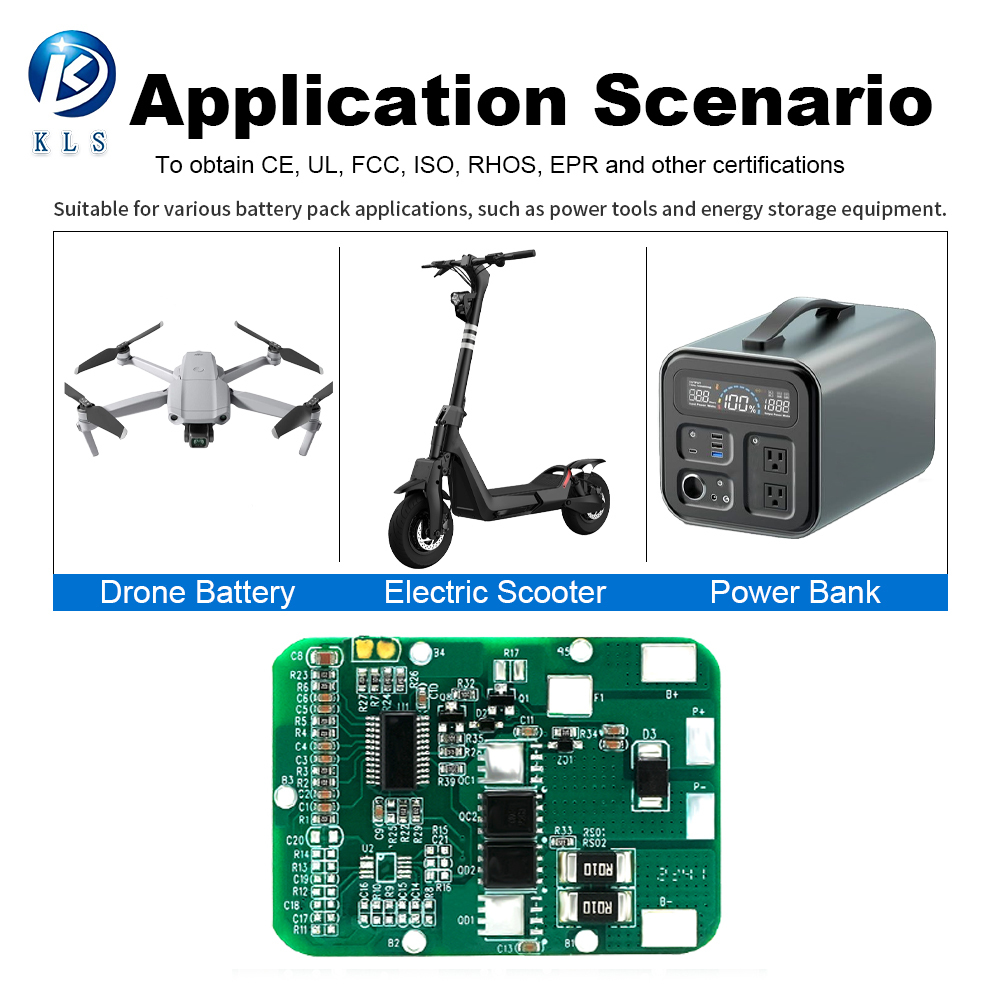

| Application field | Low speed four wheel vehicle |
| Certificate Authentication | Certificate Authentication |
| BT Function | Custom |
| Temp Sensor | Yes |
Product Details
Key Specifications

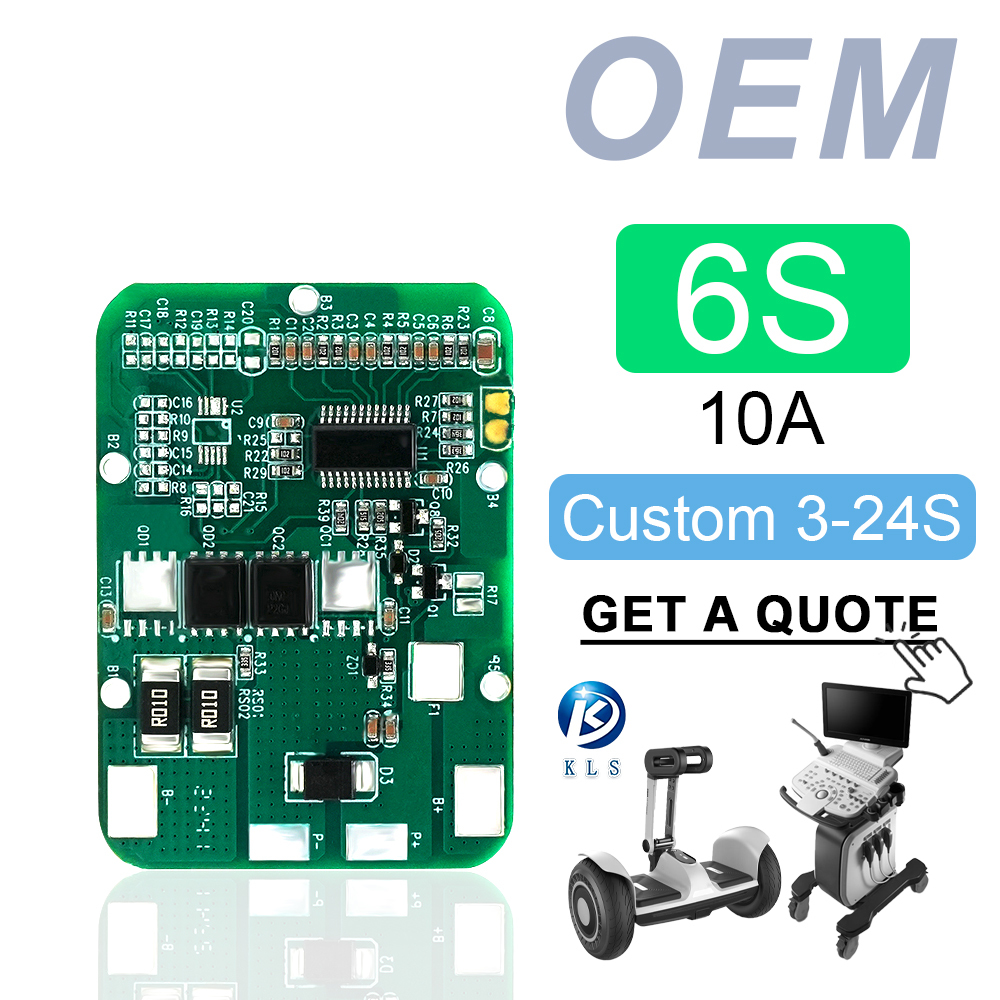

- Model: KLS-197
- Size: 50*35mm

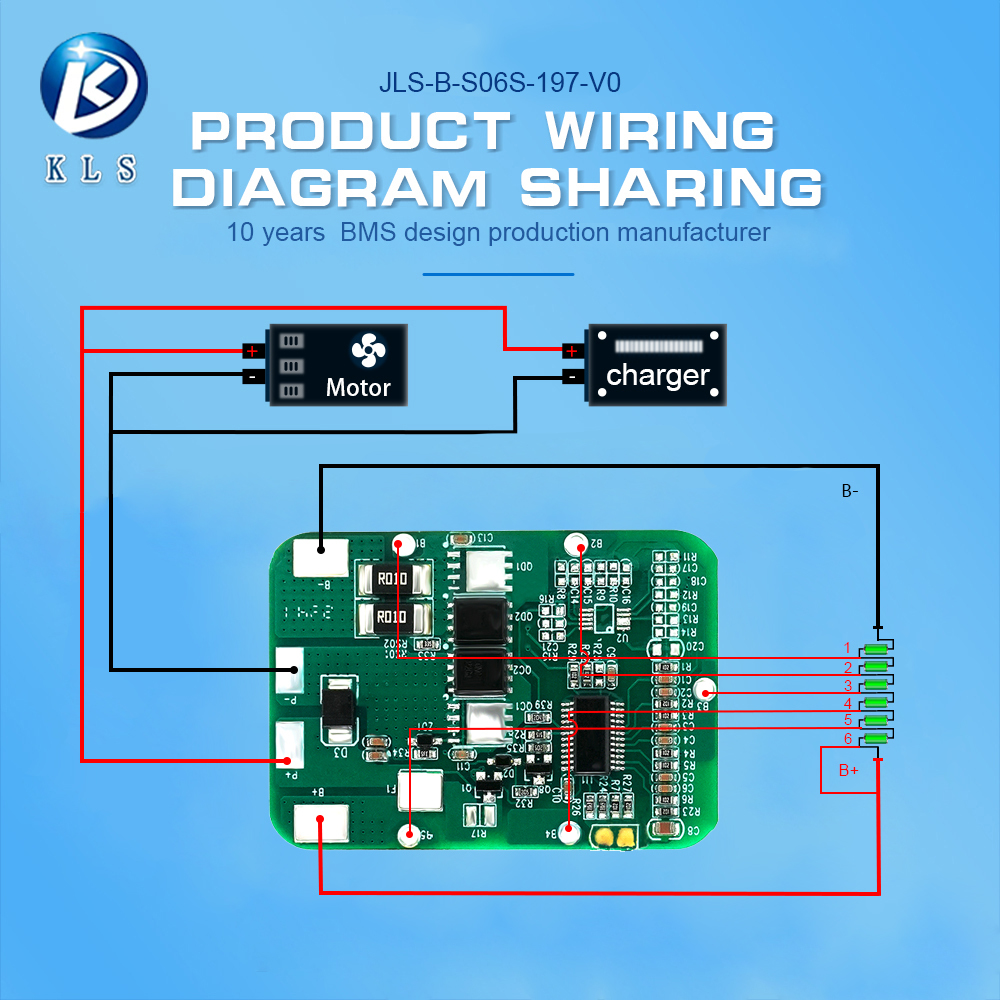

- Common Version: Common port for charge/discharge
- Custom string: 3-24S
- Customize Current: 10A-200A
- MOQ: 1pcs

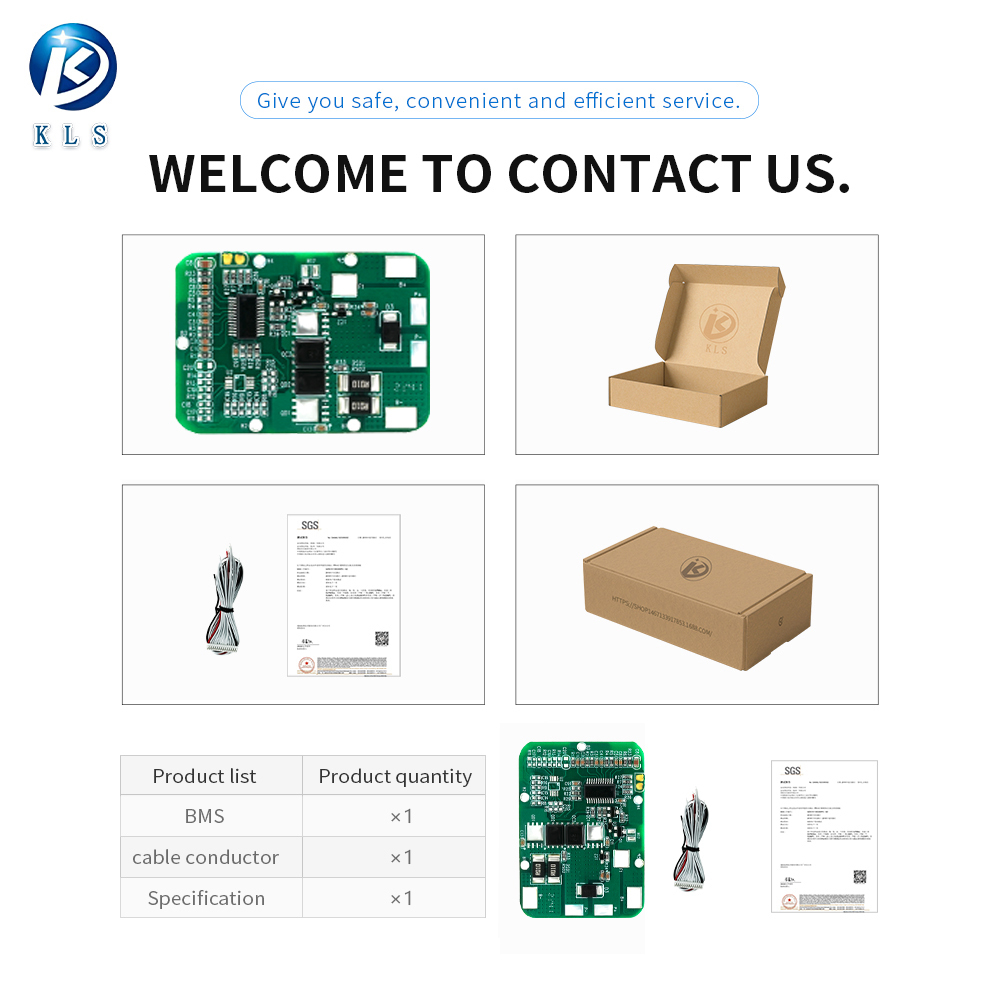

- Packaging: bubble bag/box
Customizable for any PCB from 3S-24S lithium batteries with different current requirements.
Frequently Asked Questions
Q1: What certifications do your BMS/protection boards hold for global compliance?
Our products comply with CE, RoHS, and UL standards. Custom certifications are available for OEM/ODM projects. Full documentation ensures seamless market entry.
Q2: Can you customize BMS parameters for LiFePO4, NMC, or other battery types?
Yes. Provide voltage range (e.g., 12V-72V), cell configuration, discharge current (up to 300A), and communication needs (CAN/RS485/Bluetooth...) for tailored solutions.
Q3: How does your BMS prevent critical failures like overcharge or short circuits?
Multi-layer protection includes: ±25mV voltage balancing accuracy, ultra-low impedance MOSFETs for precise current control, real-time temperature monitoring via NTC sensors, and SOC/SOH tracking with industrial-grade ICs.
Q4: What is your minimum order quantity and lead time?
Standard MOQ: 1 units (3-7 days). Bulk orders (10,000+ units) qualify for 10-day expedited production and volume discounts.
Q5: Do you offer waterproof BMS for EVs or marine applications?
Yes. Feature wide-temperature operation (-40°C to +85°C), vibration resistance, and automotive-grade connectors. Custom sealing options available.
